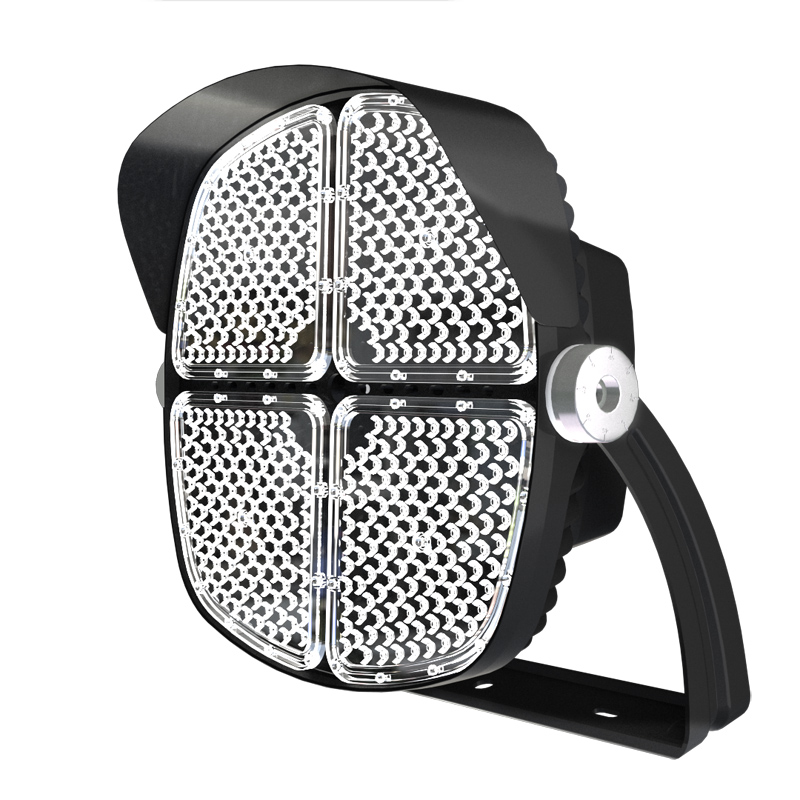

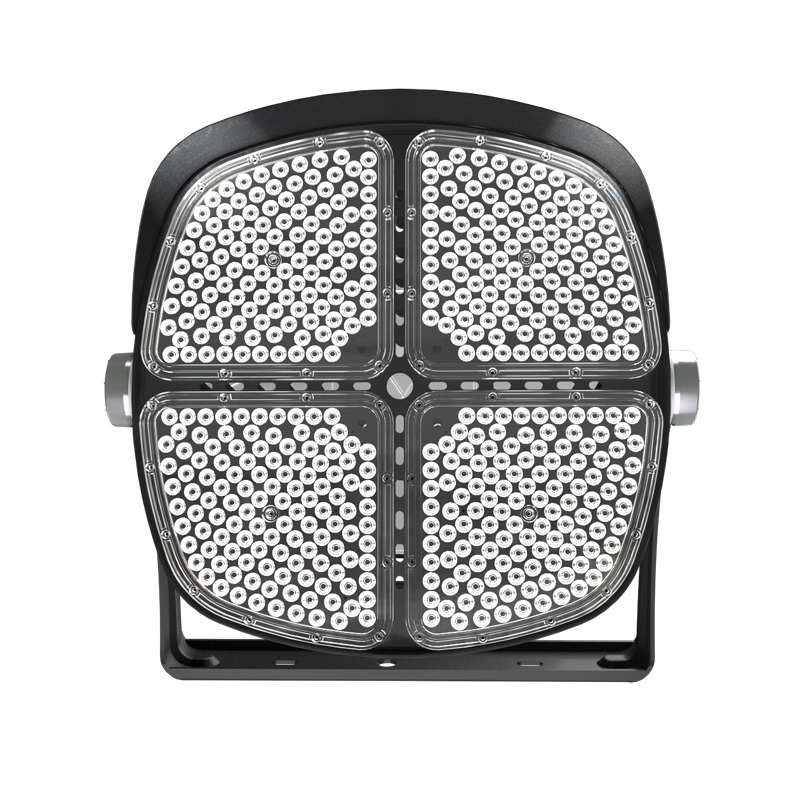

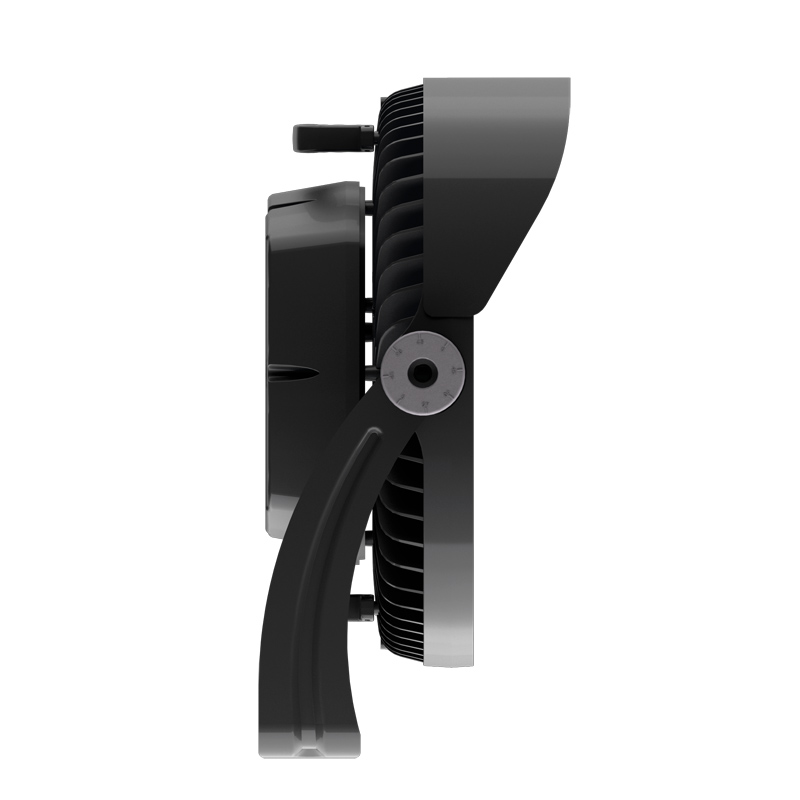

LED Sports lighting JM607

JM-6073 / JM-6072 / JM-6071
800W 1200W 1600W
IP65 IK08

Description

Advantages

Detailed Specifications

Download

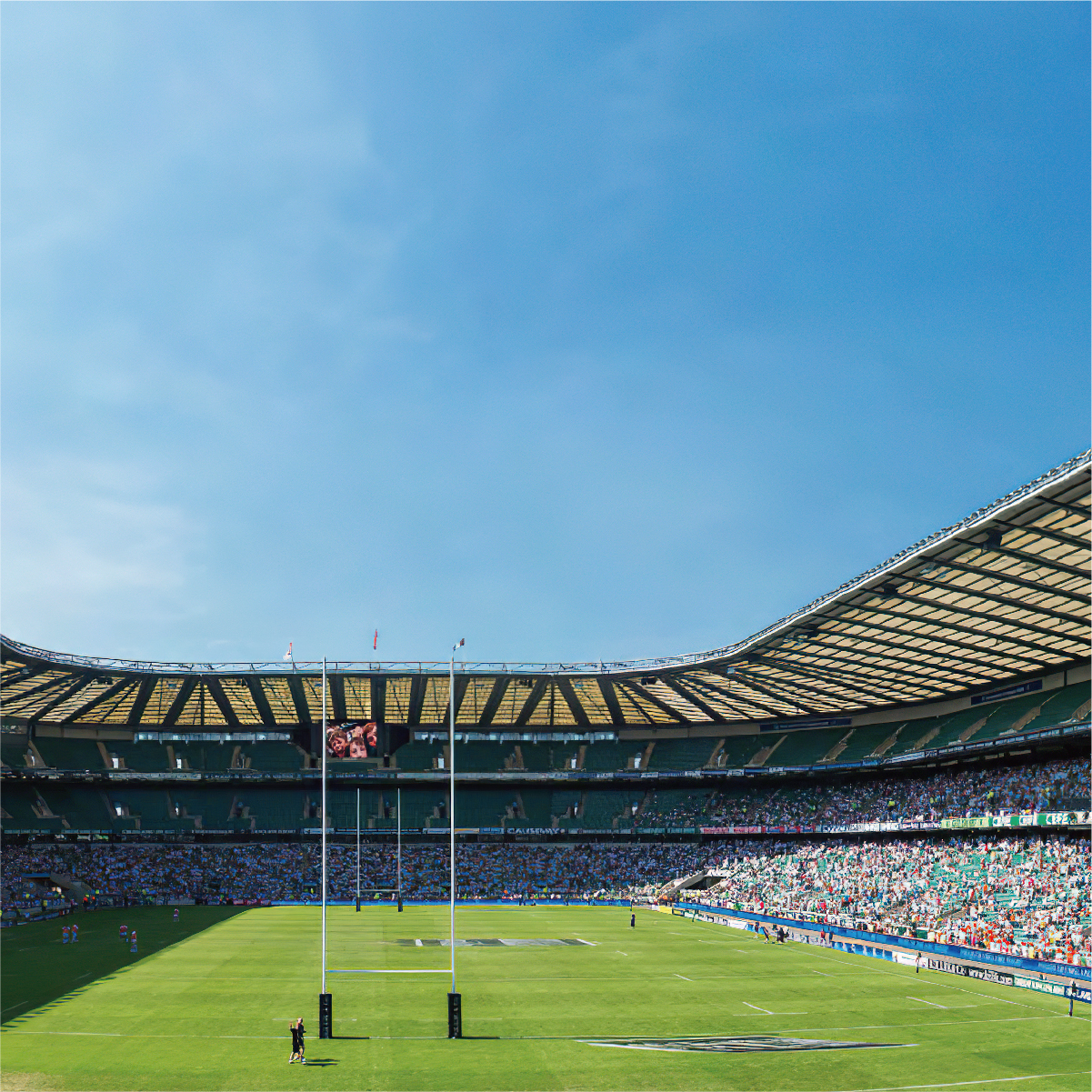

JM607 is ideal for sports field lighting,back yard sports courts,

parks ,signs,parking lot lighting,and other general applications

where sports lighting may come into use.It has wattages ranging

from 800 watts to 1600 watts.With differrent beam spreads

available,we can ajust your LED sports light fixture output to

eliminate dark sports on your sports field.

Aluminum die-casting shell

Design of hollow heat dissipation structure

Effectively increase the heat dissipation area

The standard light shield blocks spill Light and uplight

Reduction in glare and light pollution

Technical parameters
Luminous flux:104,000lm/156,000lm/208,000lm	Power:800W/1200W/1600W
Color temperature:4000K	Light Distribution:20°(Design according project requirement)
Light Source:BMTC 5050	Color rendering index (Ra):>70
Lumionous Efficacy:130lm/W	Protection:IK08
LED Driver:NFM-880S350yz/NFM-1K2S480MG/NFS-1K8T210BC	Input Voltage:200-277V
Frequency:50/60 Hz	Power Factor:>0.95
Control Method:0-10V Dimming	THD:＜15%
Surge Protection:Line-Line 20kv Line-FG 20kv	Finish:Powder Coating


Material
Main Materials: Aluminum

Certification
Certification:

Feature

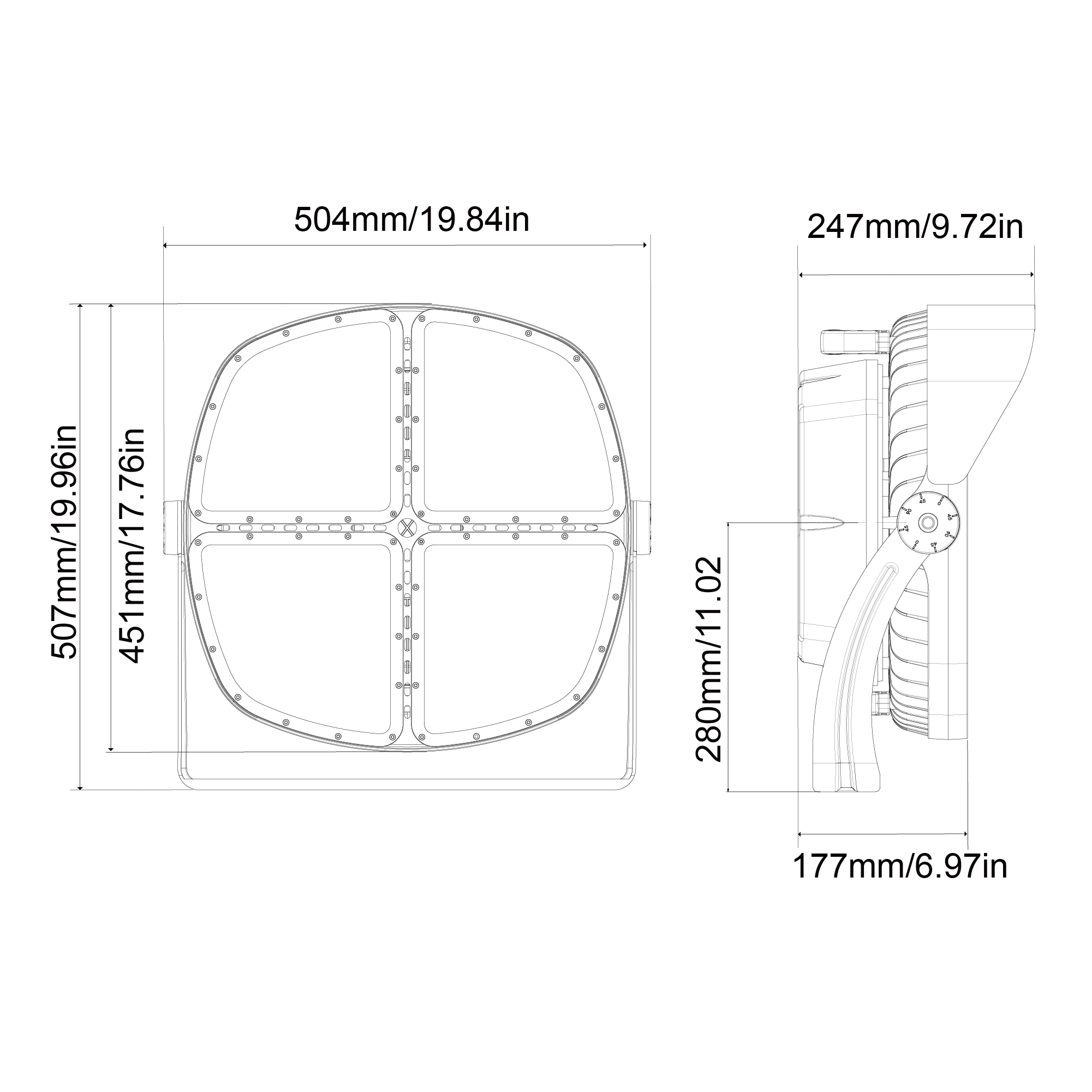

Product color:Black	Dimension:504×507×247mm/577×600×275mm /675×661×315mm

Life span
Life span:5 year

Application environment
Environment:Outdoor	Working Temperature:-30℃～50℃
IP Rating:IP65
