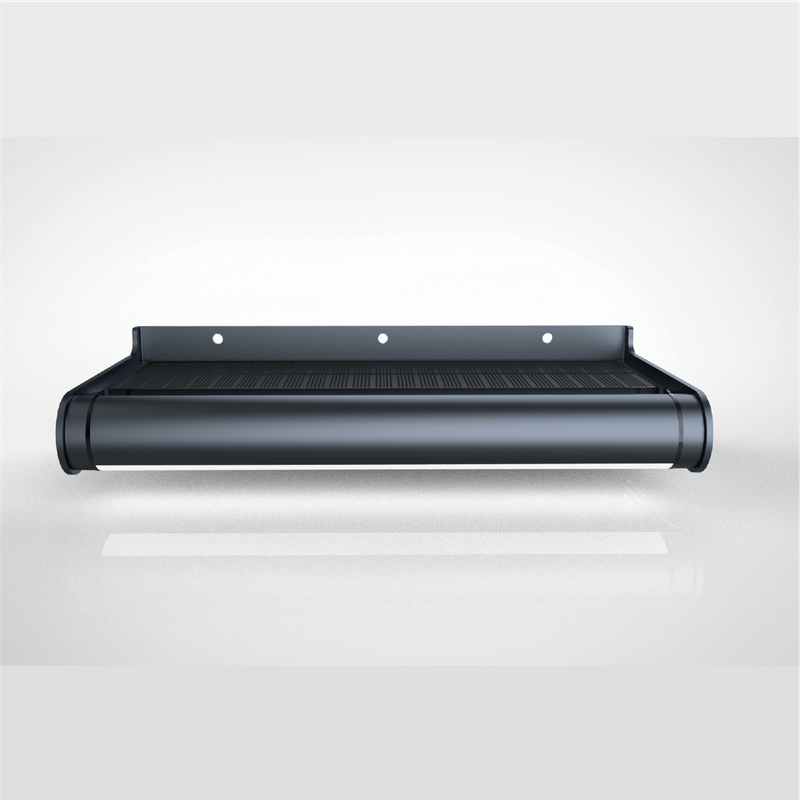

Solar Billboard Lights-Commercial

Versatile Outdoor Lighting Solution

5W/10W/20W

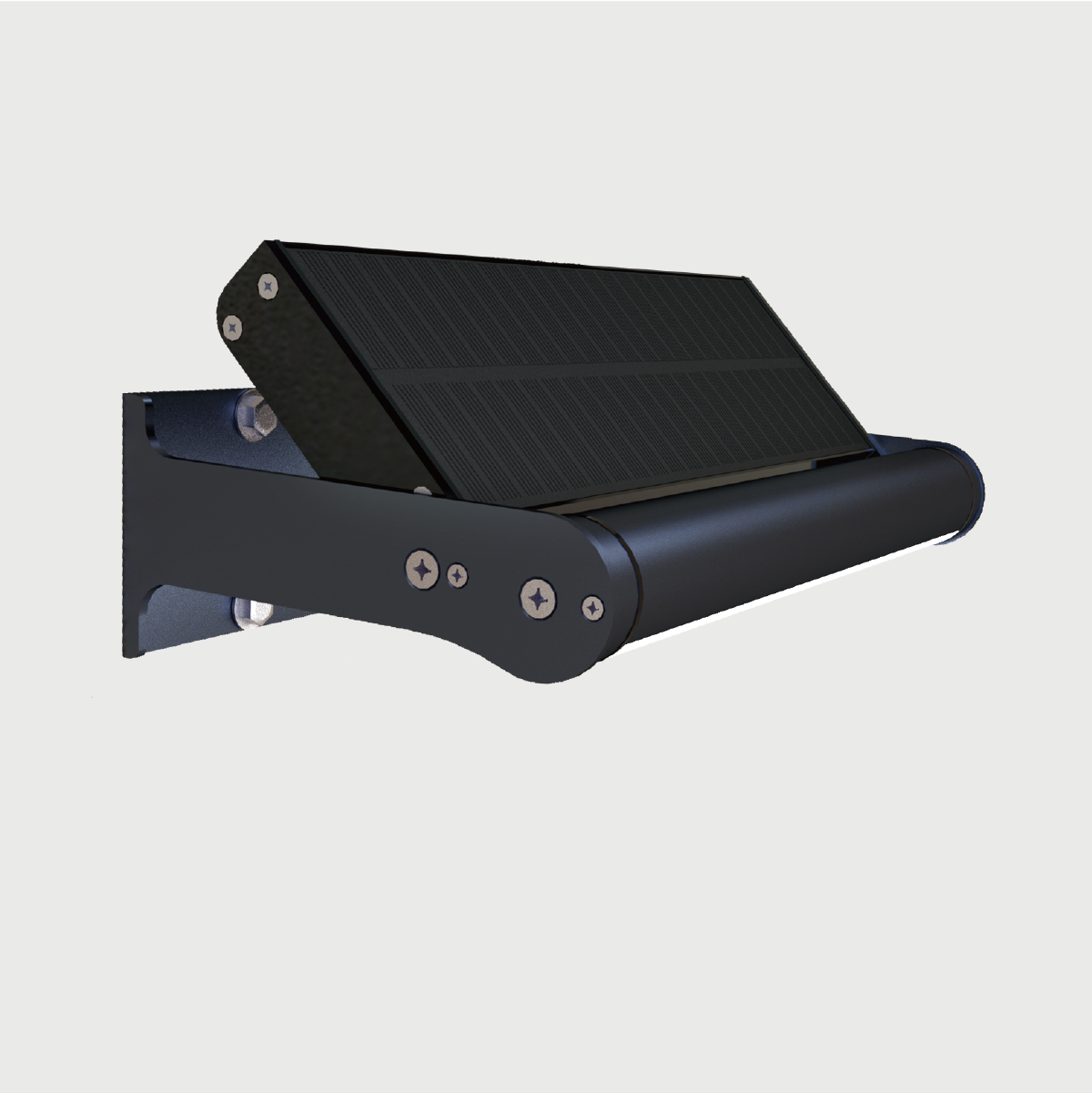

Adjustable Solar panel angle

Adjustable lighting angle

Supports external solar panel connection for extended lighting duration

Availability:

Description

Advantages

Detailed Specifications

Download

Video

5W, 10W, 20W

Versatile Outdoor Lighting Solution

Solar Power Supply

The billboard light automatically turns on at night for 5 hours at full brightness,

then dims to 25% brightness and keeps working until dawn,

ensuring energy-saving and continuous lighting.

External solar panel continuously replenishes power significantly extending the lighting endurance.

Wireless, easy to install

No need commercial power wiring, easy to install, and meet each kinds of installation conditions.

Solar energy technology, the whole year with no electricity bill

Solar photovoltaic panel, solar panel charging automatically during the day time, lighting up when dark comes; high conversion rate solar energy technology, the whole year lighting with no electricity bill, green and energy saving.

Technical parameters
Actual power: 5W/10W/20W	Luminous flux: 600Lm/ 1200Lm/ 2400Lm
LED lighting unit: 2835/24PCS LED chip 2835/48PCS LED chip 2835/96PCS LED chip	Solar charging time: 6-10H
Light distribution characteristics: Nearly rectangular	Lighting duration: 2 - 3 Days(at full)
CCT (K): 4000 ±150K	Color rendering index (Ra): Ra＞80
IP rate: IP65	Lightning protection level: ≥4KV
Wind resistance index: GB7000.5-6.31	Lithium iron phosphate battery: Lithium 18650 6P/10.8Ah/3.7V/39.96WH Lithium 18650 2S6P/10.8Ah/7.4V/79.92WH Lithium 18650 4S6P/10.8Ah/14.8V/159.84WH
Solar panel: Monocrystalline/6V/5W/Glass Monocrystalline/9V/10W/Glass Monocrystalline/18V/20W/Glass	Working environment: -25℃～65℃

Material
Main Materials:Alum&PC

Certification
Certification:

Feature
Product color:Black	Dimension: 300×198×61mm 600×198×61mm 1204×198×61mm
