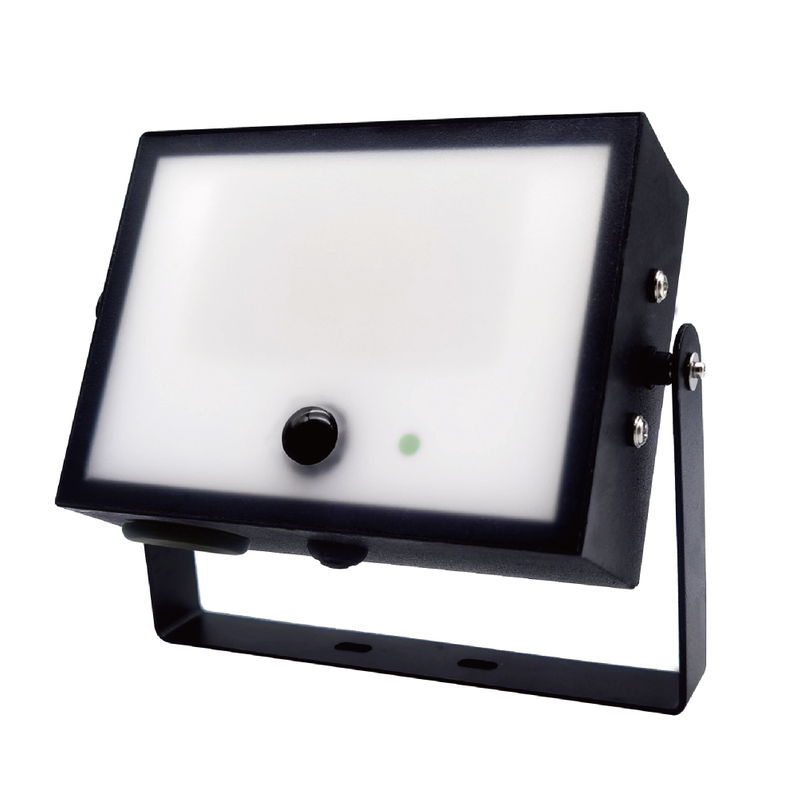

‌TAD-M

Solar Flood Light

700LM 1000LM 1500LM
PIR sensor

Lights up for 30 seconds when motion is detected

Availability:

Description

Advantages

Detailed Specifications

Download

Video

The "light sensor" system can automatically sense the direction changes of sunlight and change the solar panel direction accordingly, Which can gather the solar energy maximally.

700LM 1000LM 1500LM

Ra＞80 IP65 PIR sensor

Lights up for 30 seconds when motion is detected

Attentions

1、Please keep it away from the children to avoid them touching danger.

2、Do not dispose of battery in fire. This may result in an explosion.

3、Do not expose the light to fire or intense heat as the battery may explode.

4、Do not immerse in water.

5、Never look directly into the light or shine it into another person's eyes.

6、Follow proper safety tips to prevent from falling off a ladder.

7、Consult your local construction safety guide if needed for installing the light fixture on a building.

8、This product can be installed outdoors, but we suggest that against installing for the rain/storm&high lights places.

9、Please use soft wet cloth to clean solar panel(at least once a year), preventing dust accumulated and reducing output power.

Wireless, easy to install

No need commercial power wiring, easy to install, and meet each kinds of installation conditions.

Solar energy technology, the whole year with no electricity bill

Solar photovoltaic panel, solar panel charging automatically during the day time, lighting up when dark comes; high conversion rate solar energy technology, the whole year lighting with no electricity bill, green and energy saving.

Long lasting duration, lighting all night.

Large battery capacity, ensure the luminaire long time lighting, and lasting Max 12h.

IP65 Protection

Precision and waterproof wire material, antioxidant and waterproof connector to prevent leakage; IP65 protection, fearless wind and rain, and meet outdoor use.

Technical parameters
Luminous flux:700/1000/1500lm	Power:7W/10W/15W
Color temperature:3000K / 4000K / 5000K/ 6500K	Type:2835/32PCS/50PCS/84PCS LED chip
Protection:IK06	Beam angle:120°
CRI:Ra≥80	Lightning protection level(conform to)：≥4000V
EEI:E	Wind resistance index:GB7000.5-6.31
Solar charging time:8-12H	Controller:PIR sensor
Sensor distance:3-6 m



Material
Main Materials:Alum&PC

Certification
Certification:

Feature

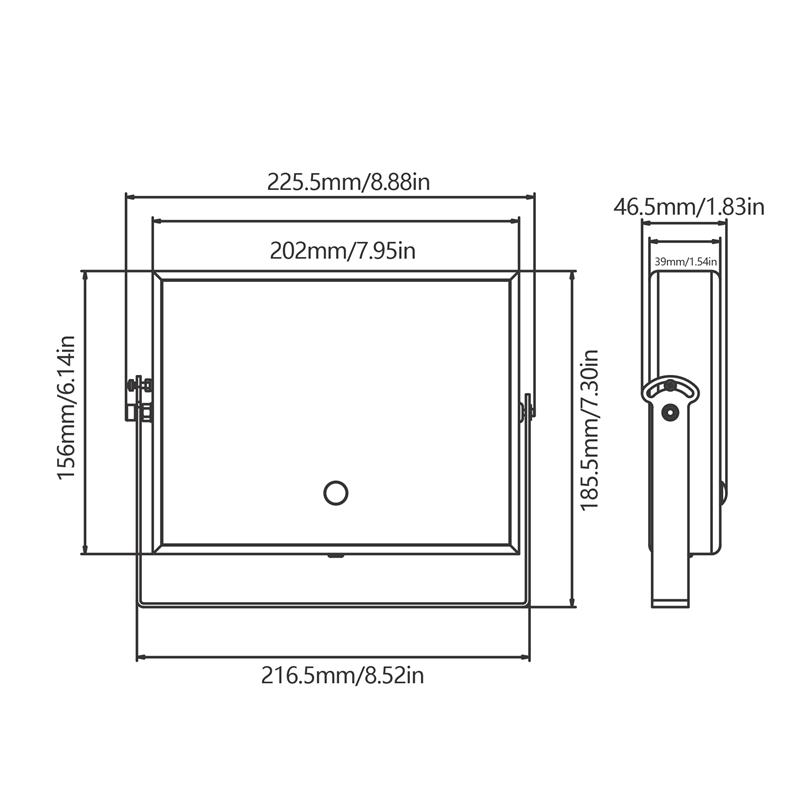

Product color:Black	Dimension:122x90x39mm/156x120x39mm/202x156x39mm

Life span
Life span:2 year

Solar panel specification
The battery type:Lithium batteries	Voltage:DC3.7V/ DC3.7V/ DC7.4V
Capacity:1800mAh/1800mAh/1800mAh	Solar panel power:5V 1.2W/5V 2.1W/12V 5W
Type of solar panel:Monocrystalline silicon	Solar panel size:L112W80mm/L146W110mm/ L192*W146mm
Warranty:1 year

Application environment
Environment:Outdoor	Working Temperature:-20℃～40℃
IP Rating:IP65

Package
Inner QTY: 1 pcs 7W Outer QTY: 40 pcs 10W Outer QTY: 36 pcs 15W Outer QTY: 20 pcs	7W Color box size（ L x W x H): 150x51x135mm 10W Color box size（ L x W x H): 185x51x165mm 15W Color box size（ L x W x H): 230x51x200mm 7W Outer box size（ L x W x H): 550x325x300mm 10W Outer box size（ L x W x H): 585x340x360mm 15W Outer box size（ L x W x H): 550x485x230mm
7W N.W/G.W(kg): 12.7/15.5 10W N.W/G.W(kg): 16.4/19.7 15W N.W/G.W(kg): 12.0/14.8
