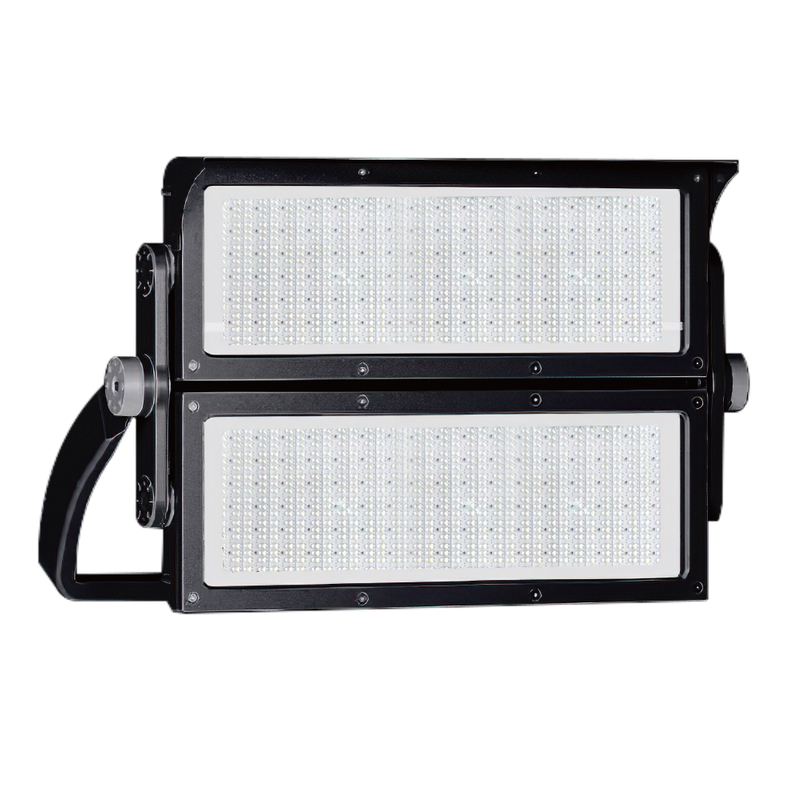

LED Sports lighting JM203-2P

JM-2033-2P / JM-2032-2P / JM-2031-2P
800W 1200W 1600W
IP65 IK08

Description

Advantages

Detailed Specifications

Download

JM203 is robust and modern design.

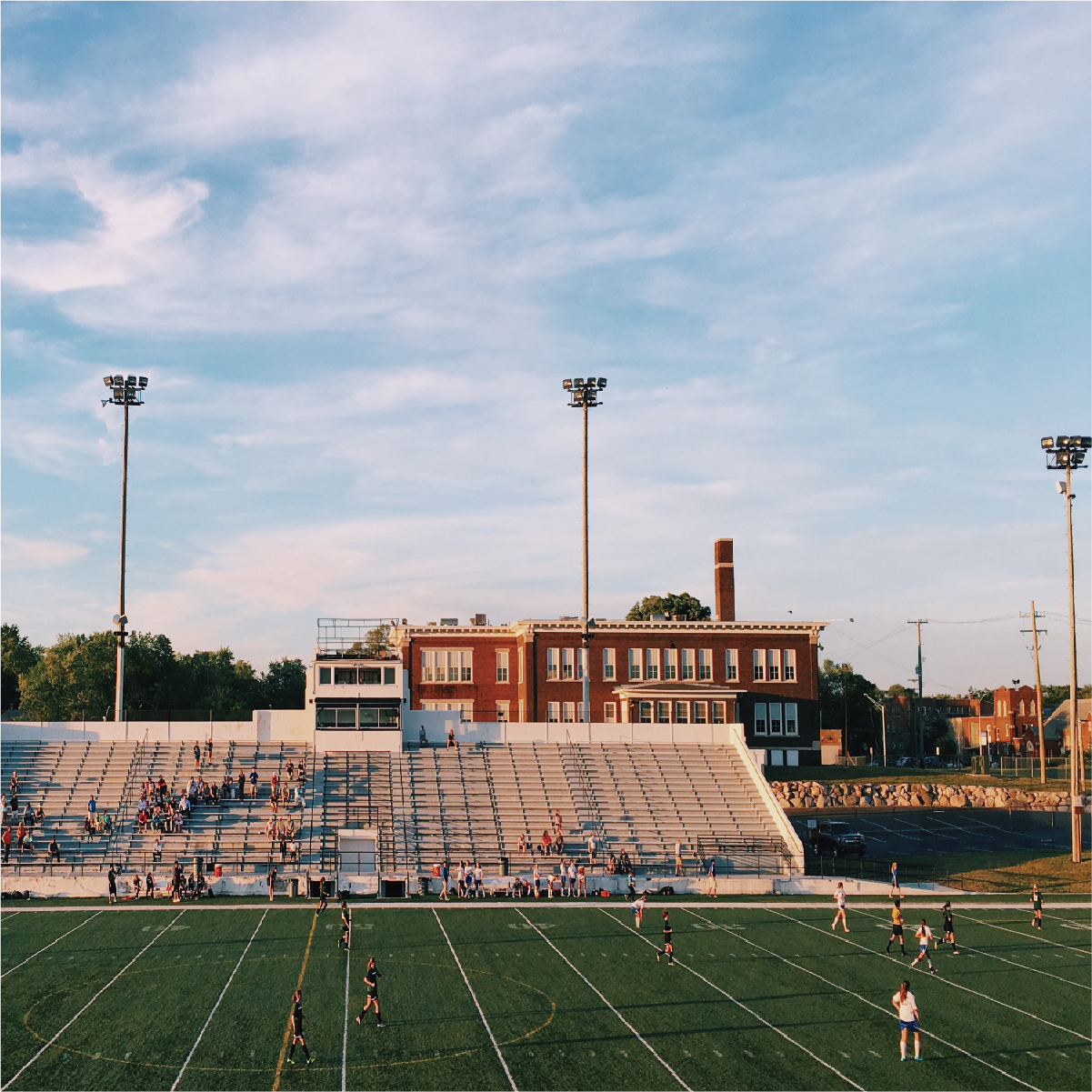

It is an ideal solution for sports andmultifunctional lighting applications.

JM203 flood light offers outstanding light quality,effective thermal management,and long lifetime.

The floodlight range includes 800W, 1200W and 1600W with different beam angle options.

Aluminum die-casting shell

Design of hollow heat dissipation structure

Effectively increase the heat dissipation area

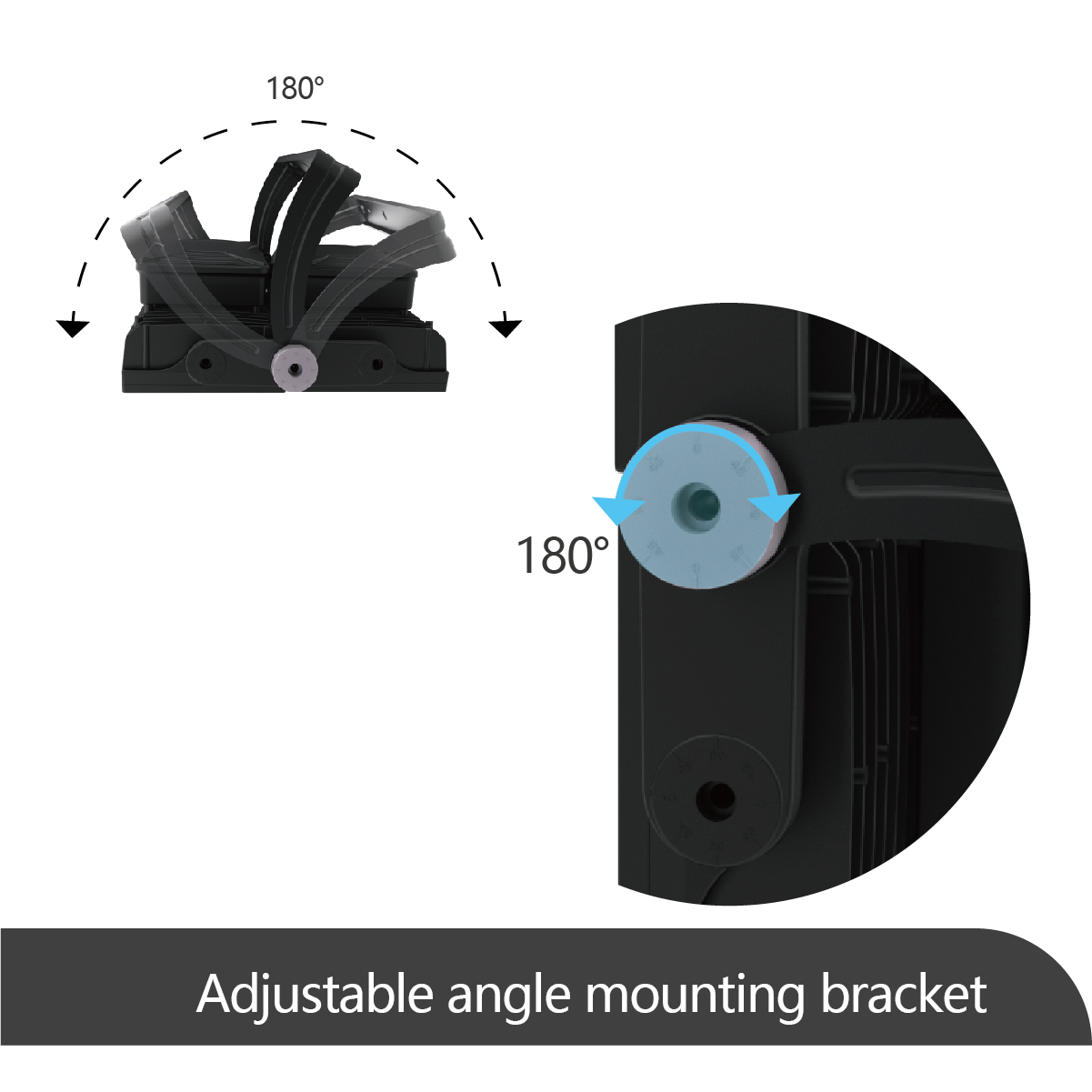

Adjustable angle mounting bracket

Powder coating with outdoor polyester＆ anti-corrosion material

Technical parameters
Luminous flux: 104,000lm/156,000lm/208,000lm	Power: 800W/1200W/1600W
Color temperature:4000K	Light Distribution:70°×150°(Design according project requirement)
Light Source:BMTC 5050	Color rendering index (Ra):>70
Lumionous Efficacy:130lm/W	Protection:IK08
LED Driver: EUM-480S280MG/EUM-680S560MG/NFM-880S350yz	Input Voltage:200-277V
Frequency:50/60 Hz	Power Factor:>0.95
Control Method:0-10V Dimming	THD:＜15%
Surge Protection:Line-Line 20kv Line-FG 20kv	Finish:Powder Coating


Material
Main Materials: Aluminum

Certification
Certification:

Feature

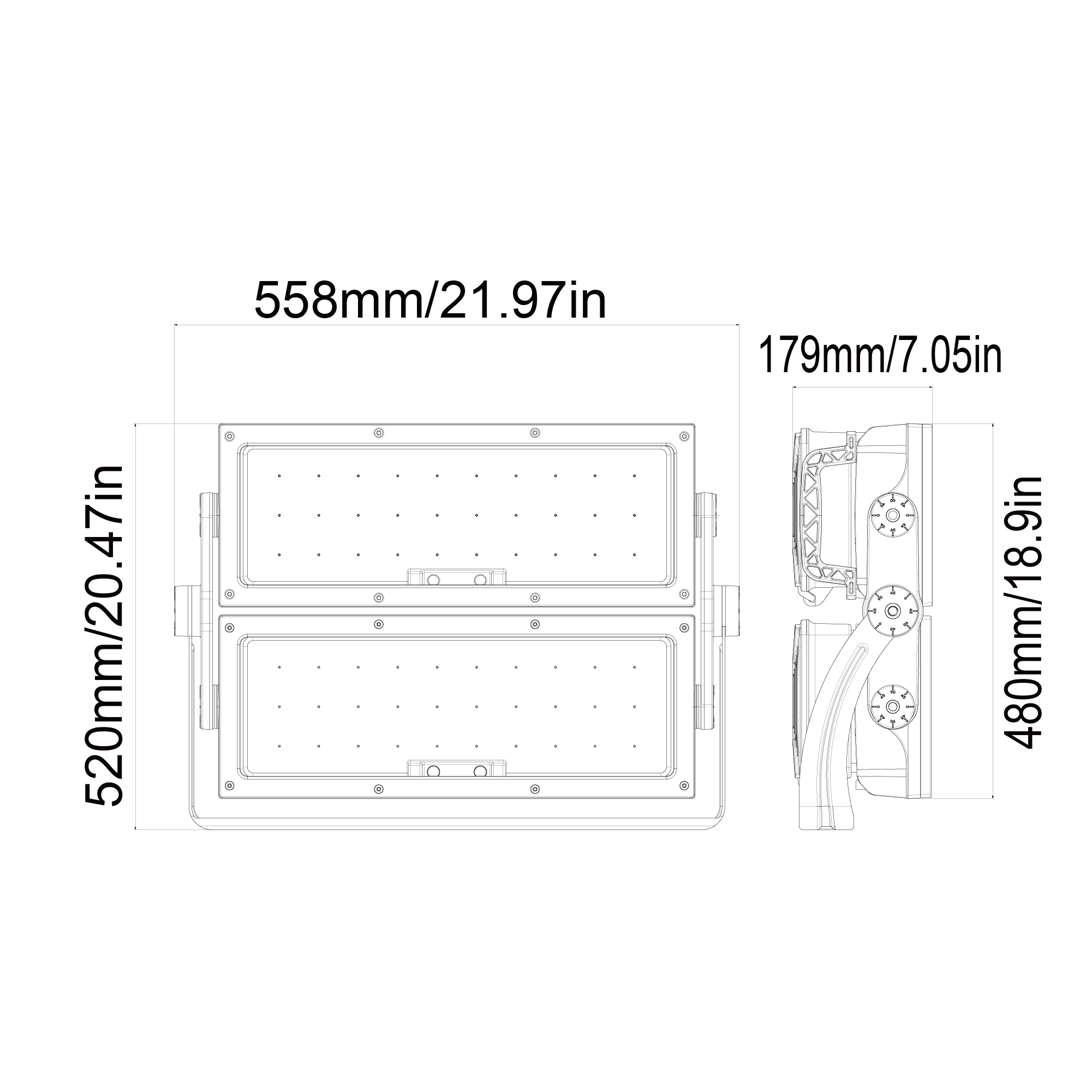

Product color:Black	Dimension: 558×520×179mm 723×520×179mm 883×630×196mm

Life span
Life span:5 year

Application environment
Environment:Outdoor	Working Temperature:-30℃～50℃
IP Rating:IP65
