LED Sports lighting JM123

JM-1236 / JM-1235 / JM-1234 / JM-1233 / JM-1232 / JM-1231
200W 300W 400W 600W 800W 1000W
IP65 IK08

Description

Advantages

Detailed Specifications

Download

JM123 is a coste-effective solution,

with full range of wattage and optional light distribution,

JM123 is available for multiple applications,

Multiple light distribution for different applications

even for stadium and billboard.

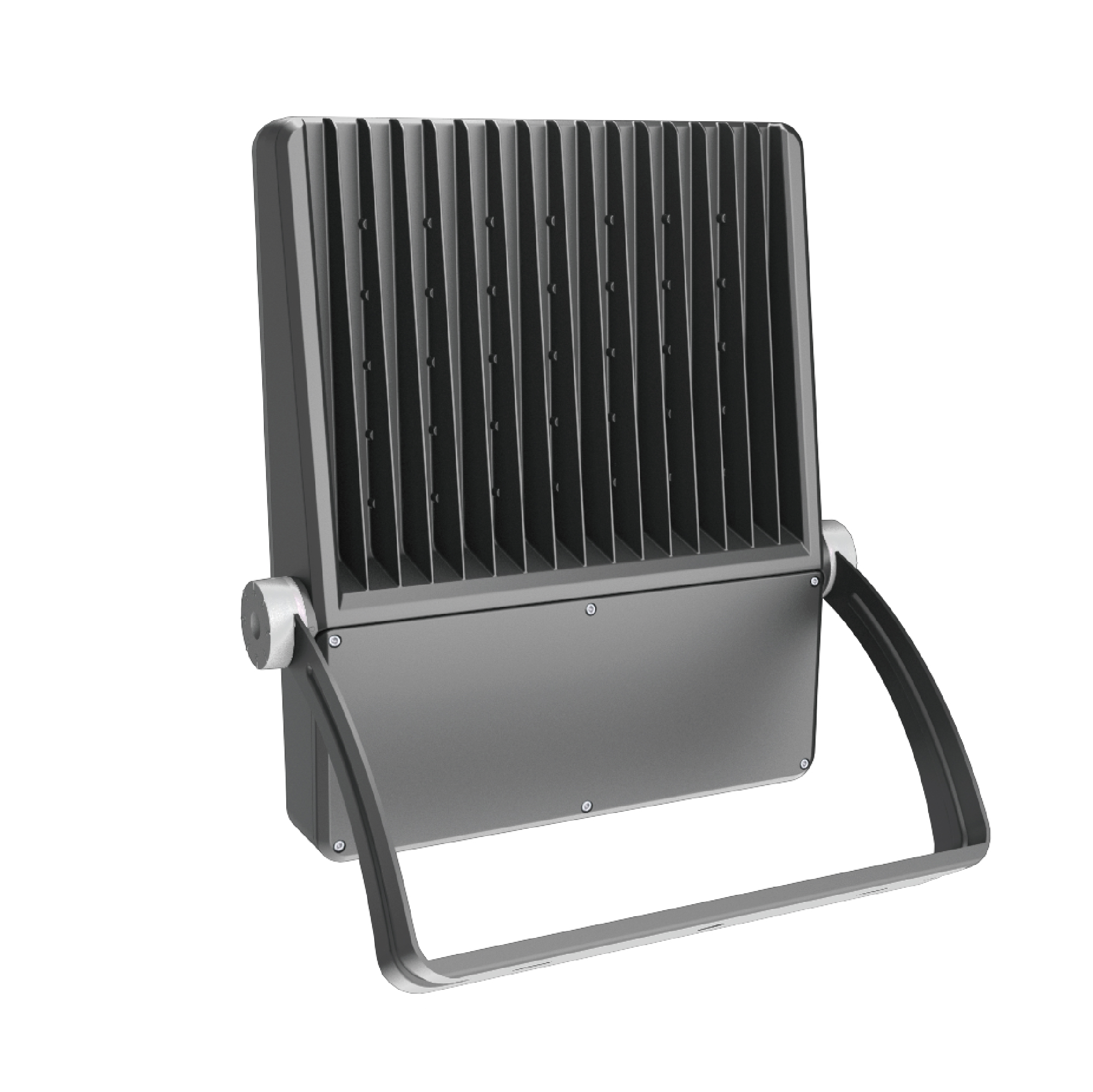

Aluminum die-casting shell

Design of hollow heat dissipation structure

Effectively increase the heat dissipation area

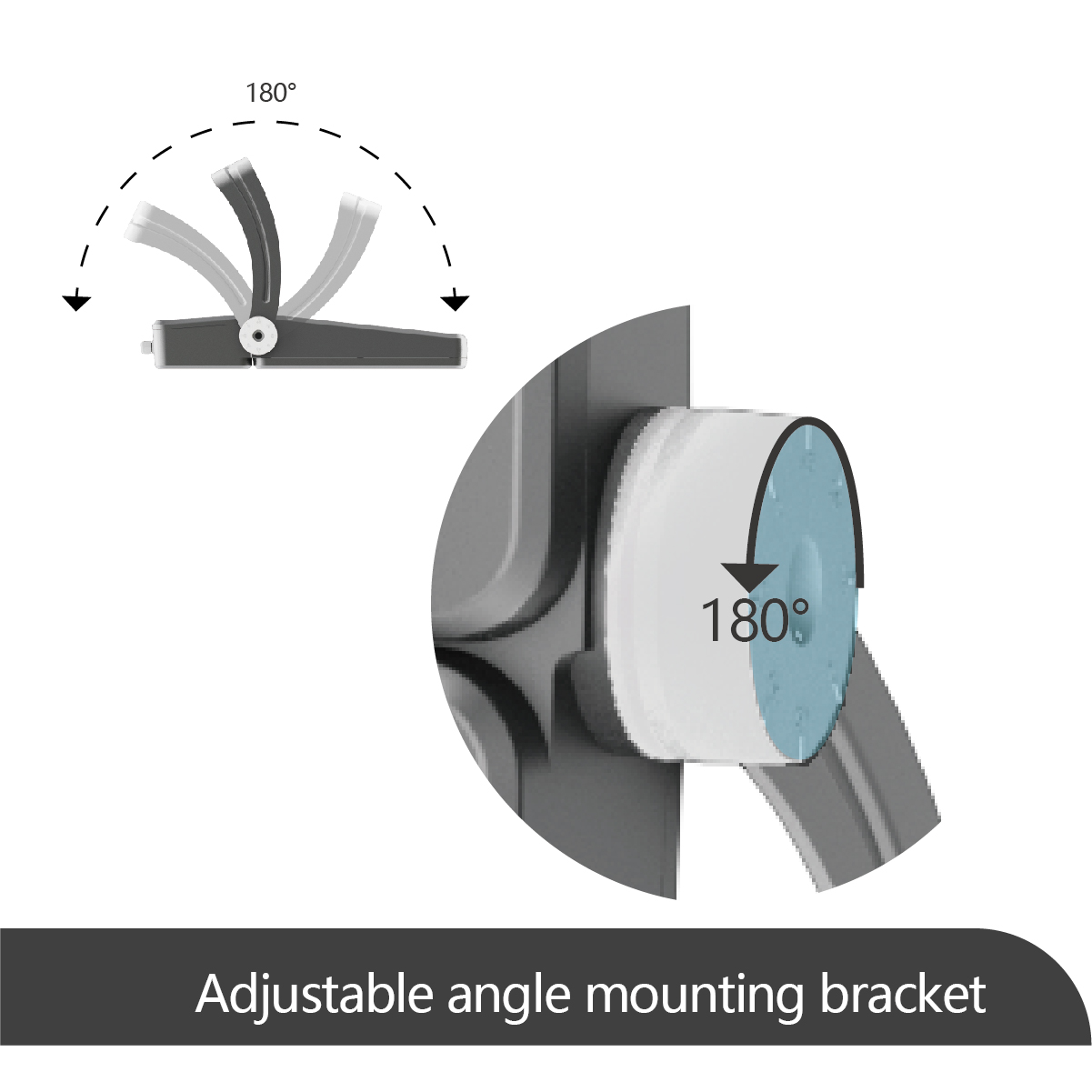

Adjustable angle mounting bracket

Powder coating with outdoor polyester＆ anti-corrosion material

Technical parameters
Luminous flux: 26,000lm/39,000lm/52,000lm/78,000lm/104,000lm/130,000lm	Power: 200W/300W/400W/600W/800W/1000W
Color temperature:4000K	Light Distribution:85°×155°(Design according project requirement)
Light Source:BMTC 5050	Color rendering index (Ra):>70
Lumionous Efficacy:130lm/W	Protection:IK08
LED Driver: EUM-200S560DG/EUM-320S500DG/EUM-480S280MG NFM-880S350yz/NFM-880S350yz/NFM-1K2S480yz	Input Voltage:200-277V
Frequency:50/60 Hz	Power Factor:>0.95
Control Method:0-10V Dimming	THD:＜15%
Surge Protection:Line-Line 20kv Line-FG 20kv	Finish:Powder Coating


Material
Main Materials:Aluminum

Certification
Certification:

Feature
Product color:Silver gray	Dimension: 399×470×134mm 449×510×141mm 504×635×176mm 554×680×176mm 620×802×208mm 675×852×208mm

Life span
Life span:5 year

Application environment
Environment:Outdoor	Working Temperature:-30℃～50℃
IP Rating:IP65
