| SPECIFICATION | |

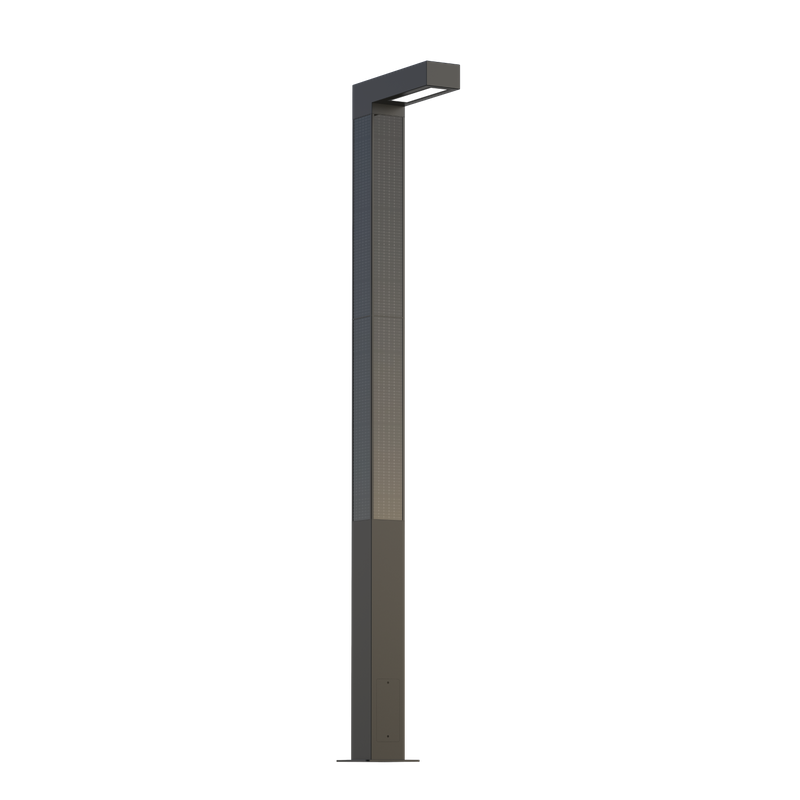

| Model Number: Faro | Height: 2-8m |
| SYSTEM MODULE | |
| Fixture Material: Die Cast ADC12+Extrusion Aluminum 6063+Q460 | System Color: Black / Sliver / customized finishes available |
| Sail Area / EPA: 0.44-1.76㎡ | IP&IK Protection: IP65, IK10 |
| Operating Temp: -15℃～+50℃ | Warranty: 5-10 Years |
| LED LIGHT | |
| LED Chips: CREE / OSRAM / LUMILEDS / Nichia / SEOUL | Power Consumption: 10-120W |
| Output: 110-200LM/W | Light Distribution: T2 / T3 /T4 |
| CCT: 2700K-6500K | |
| Runtime: STD-4 Step dimming | |
| BATTERY | |
| Type: LiFePO4 Passive cell balancing technology Individual cell monitoring / Deeper discharge cycles | Capacity: 36Ah 12.8V (15W&20W) LiFePo4 90Ah 25.6V (100W) LiFePo4 |
| Cycles: 3000 | |
| SOLAR MODULE | |
| Watt: Pmax 1000W Monocrystalline | Bird Spikes: Stainless Steel (optional) |
Dimensions: 220x220x8000mm(2000x8000mm-optional) | |
| MOUNTING OPTIONS | |
| Direct bury | |
| Base plate mount | |
