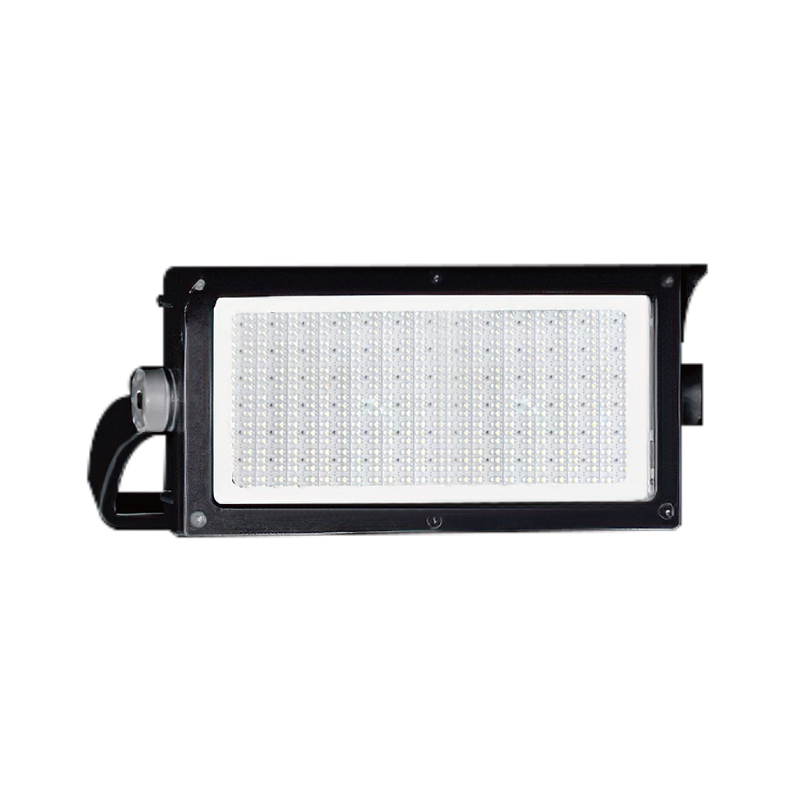

LED Sports lighting JM203

JM-2033 / JM-2032 / JM-2031
400W 600W 800W
IP65 IK08

Availability:

Description

Advantages

Detailed Specifications

Download

JM203 is robust and modern design.

It is an ideal solution for sports andmultifunctional lighting applications. JM203 flood light offers outstanding light quality,effective thermal management,and long lifetime.

The floodlight range includes 400W, 600W and 800W with different beam angle options.

Aluminum die-casting shell

Design of hollow heat dissipation structure

Effectively increase the heat dissipation area

Adjustable angle mounting bracket

Powder coating with outdoor polyester＆ anti-corrosion material

Technical parameters
Luminous flux: 52,000lm/78,000lm/104,000lm	Power: 400W/ 600W/ 800W
Color temperature:4000K	Light Distribution:70°×150°(Design according project requirement)
Light Source:BMTC 5050	Color rendering index (Ra):>70
Lumionous Efficacy:130lm/W	Protection:IK08
LED Driver: EUM-480S280MG/EUM-680S560MG/NFM-880S350yz	Input Voltage:200-277V
Frequency:50/60 Hz	Power Factor:>0.95
Control Method:0-10V Dimming	THD:＜15%
Surge Protection:Line-Line 20kv Line-FG 20kv	Finish:Powder Coating


Material
Main Materials: Aluminum

Certification
Certification:

Feature

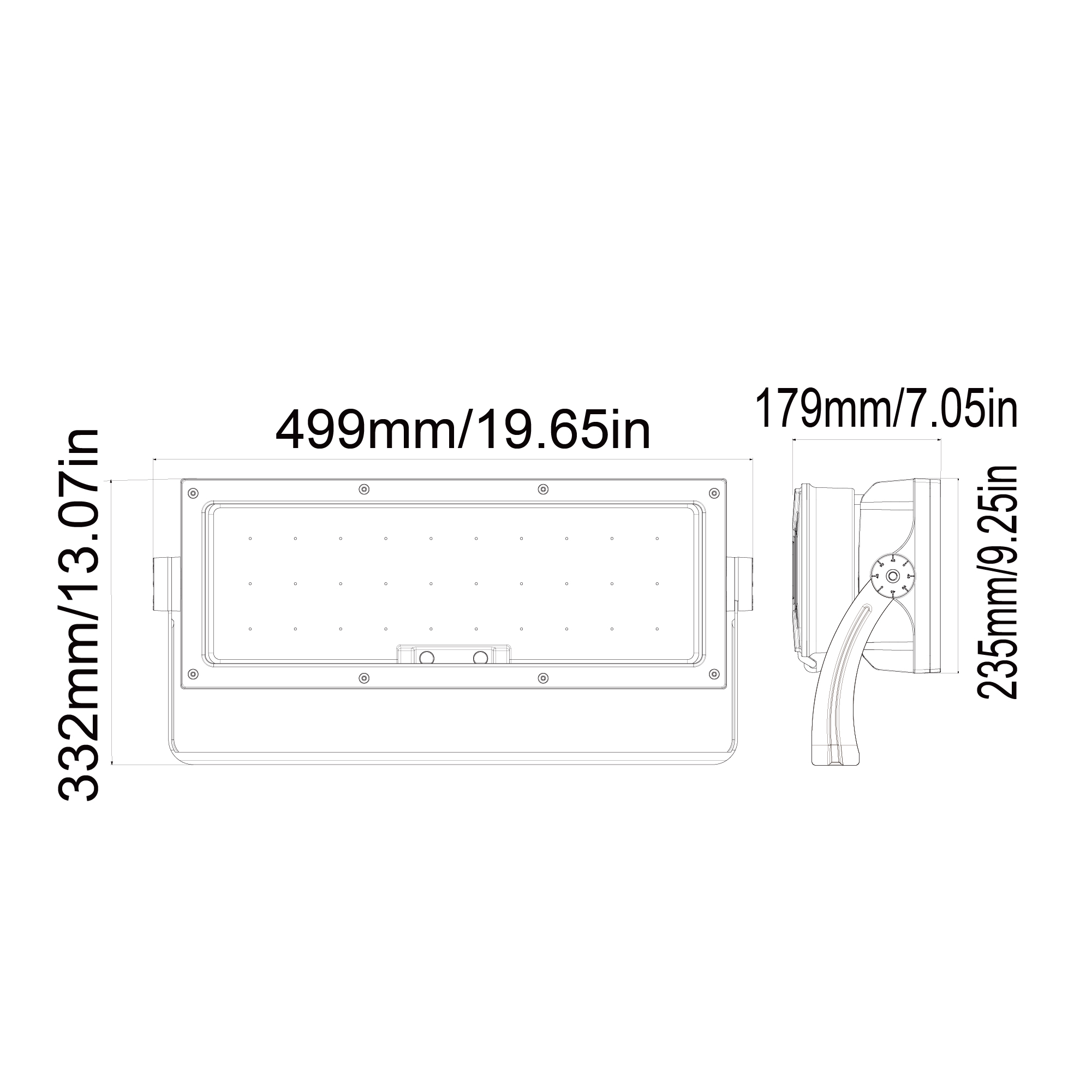

Product color:Black	Dimension: 499×332×179mm 664×332×179mm 763×422×191mm

Life span
Life span:5 year

Application environment
Environment:Outdoor	Working Temperature:-30℃～50℃
IP Rating:IP65

Flood Light Specification-JM203.pdf
