HUE

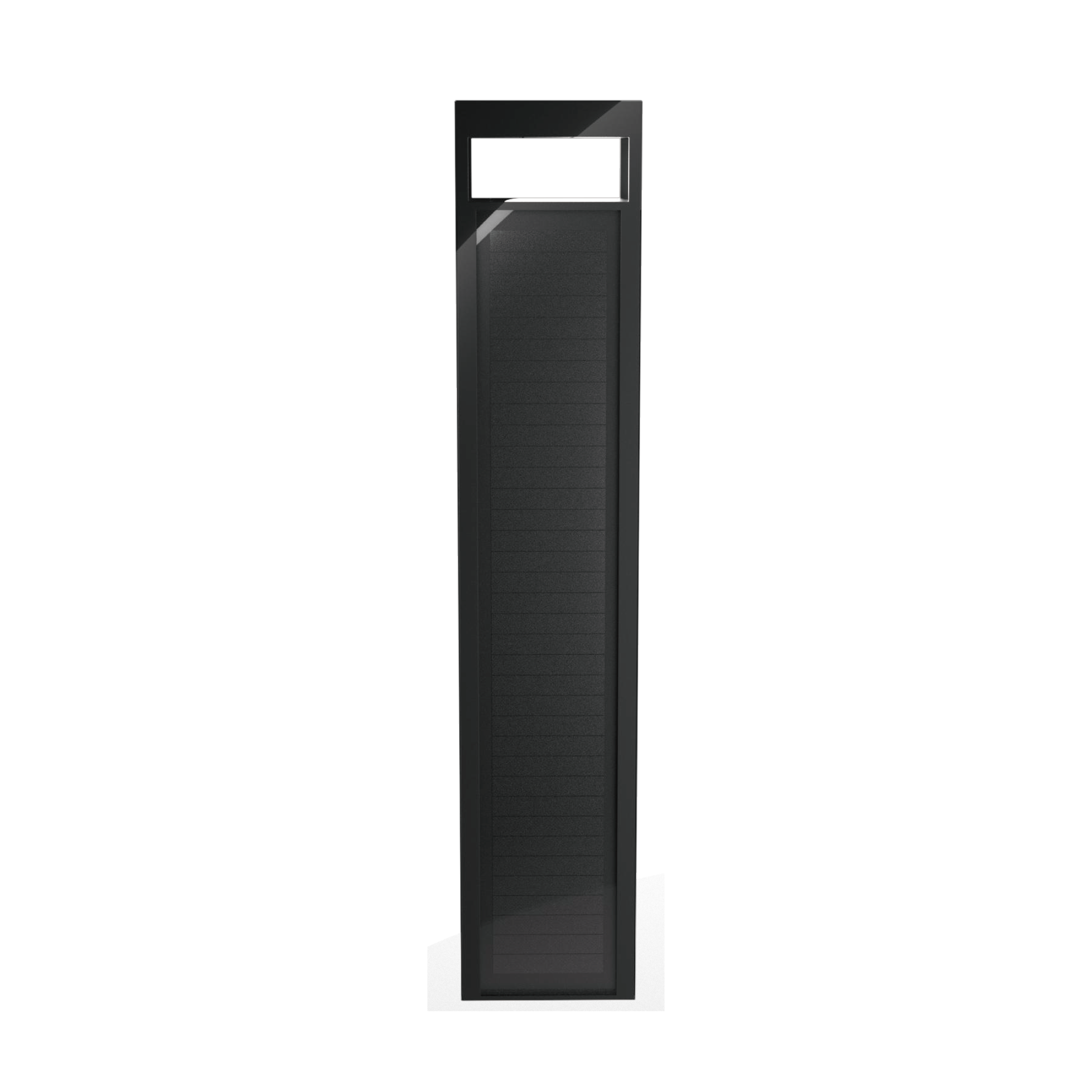

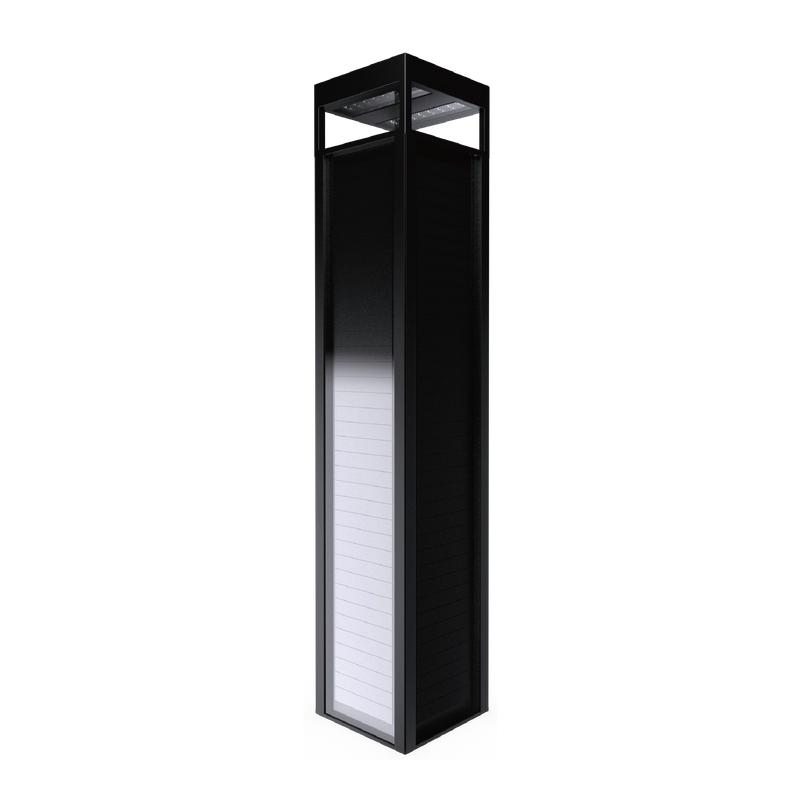

LED Solar bollard light

HUE-1000

Description

Detailed Specifications

Download

There are two series of telescopic pole to choose from,manual and automatic,

with heights ranging from 3 to 8 meters that can be customized.

SPECIFICATION
Model Number: HUE-1000	Total height: 1000mm
SYSTEM MODULE
Fixture Material: Extrusion Aluminum 6063+ADC12	System Color: Black / Sliver / customized finishes available
Sail Area / EPA: 0.182m²	IP&K Protection: IP65 & 2 times stronger than lK10
Operating Temp: -15°℃~ +50℃	Warranty: 5 Years
LED LIGHT
LED Chips: LUMILEDS	Power Consumption: 1-10W
Output: 160-200LM/W(+5%)	Light Distribution: T2/T3(customizable)
CCT: 2700K-6500K	Runtime: STD-4 Step dimming

BATTERY
Type: LiFePO4 Passive cell balancing technology Individual cell monitoring/ Deeper discharge Cycles	Capacity: 18Ah 12.8V LiFePo4 (You can choose liquid or solid-state batteries)

SOLAR MODULE
Watt: Pmax 9бW Monocrystalline	Bird Spikes: Stainless Steel (optional)
Dimensions: 182x182x1000mm
MOUNTING OPTIONS
Direct bury
Base plate mount
