| SPECIFICATION | |

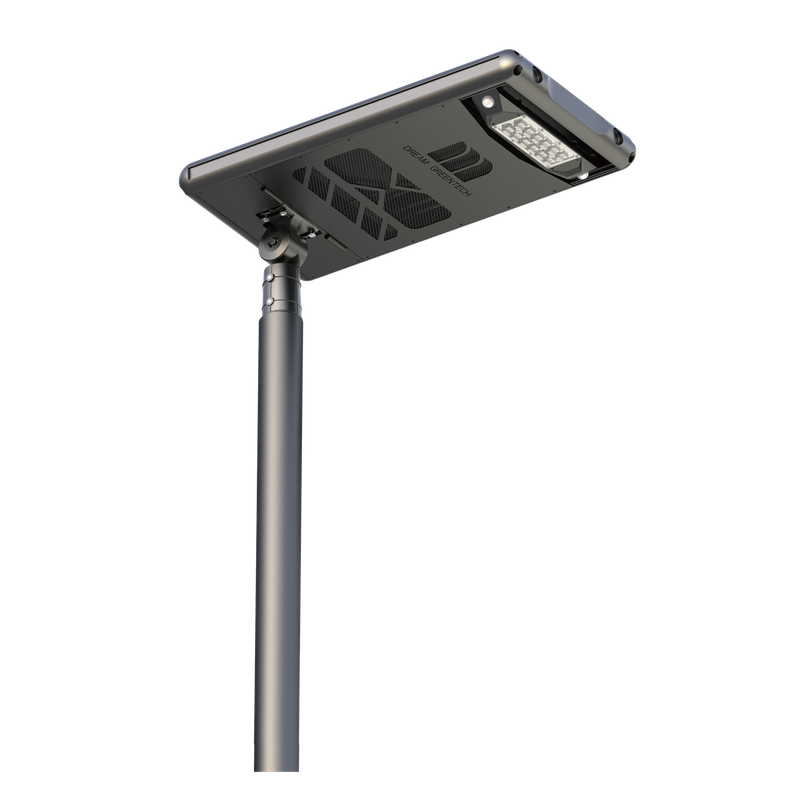

| Model Number: Arlux-35/Arlux-46/Arlux-65 | Height: 4-8m |
| SYSTEM MODULE | |
| Fixture Material: Die Cast ADC12+Extrusion Aluminum 6063 | System Color: Black / Sliver / customized finishes available |
| Sail Area / EPA: 0.24-0.4㎡ | IP&IK Protection: IP65, IK08 |
| Operating Temp: -15℃～+50℃ | Warranty: 5-10 Years |
| LED LIGHT | |
| LED Chips: CREE / OSRAM / LUMILEDS / Nichia / SEOUL | Power Consumption: 15W / 20W / 25W |
| Output: 110-160LM/W | Light Distribution: T2 / T3 /T4 |
| CCT: 2700K-6500K | |
| Runtime: STD-4 Step dimming | |
| BATTERY | |
| Type: LiFePO4 Passive cell balancing technology Individual cell monitoring / Deeper discharge cycles | Capacity: 24Ah 12.8V (15W&20W) LiFePo4 30Ah 12.8V (25W) LiFePo4 |
| Cycles: 3000-20000 | |
| SOLAR MODULE | |
| Pmax: 35W / 46W / 65W | Bird Spikes: Stainless Steel (optional) |
Dimensions: 675x351.5x181mm 760x395x181mm 1030x395x181mm | |
| MOUNTING OPTIONS | |
| Direct bury | |
| Base plate mount | |
