LUCAS

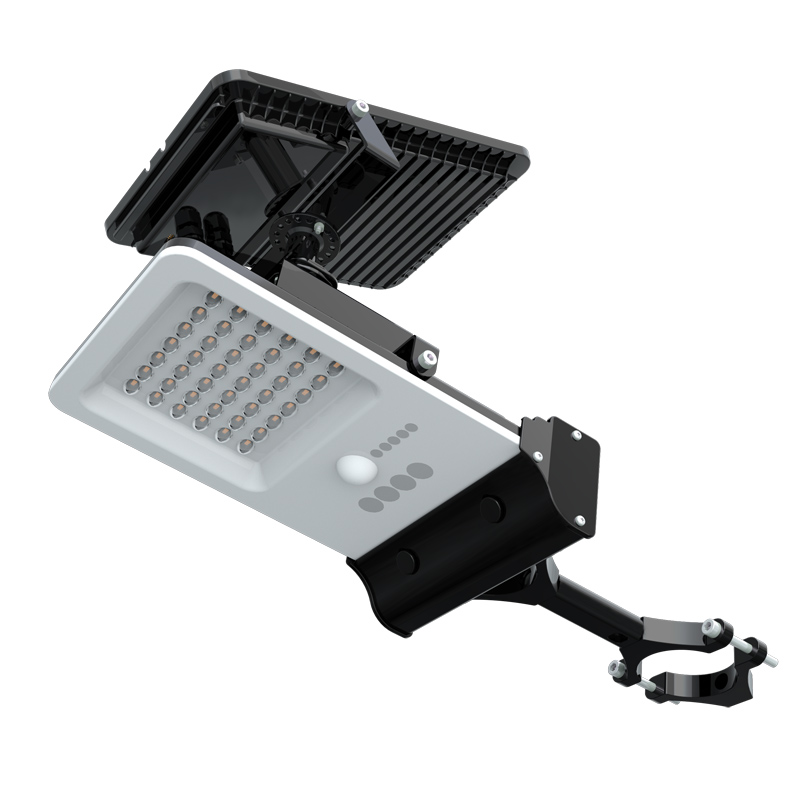

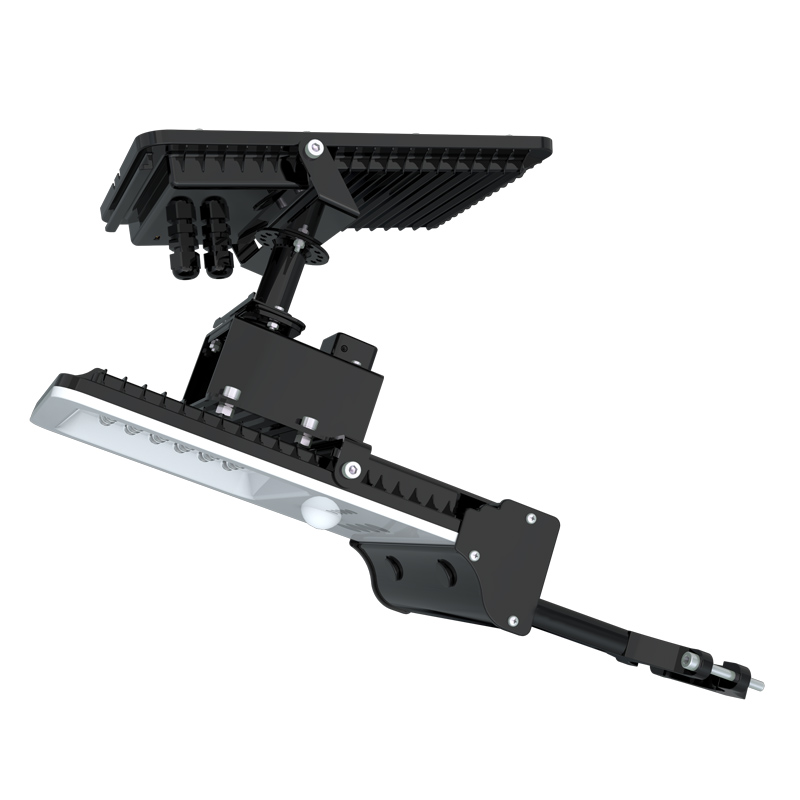

Solar Street Light 3 in 1

1000LM 2000LM 3000LM 4000LM
Ra＞80 IP65 PIR sensor
Battery power <25% use AC100-230V
Battery power >25% solar working
DC/AC Intelligent detection and switching DC/AC

Fully charged can be used for4-5 rainy days

Availability:

Description

Advantages

Detailed Specifications

Download

Video

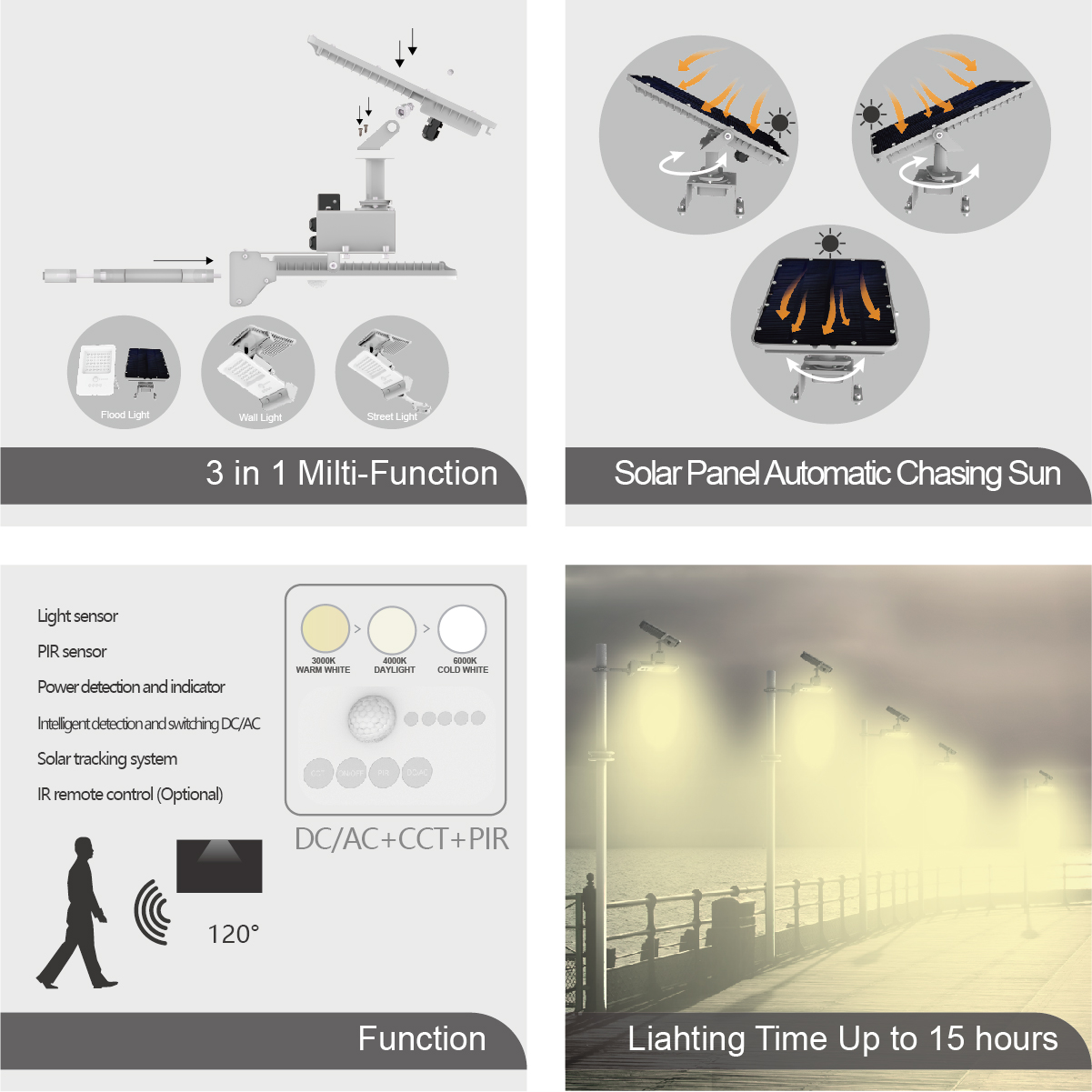

The "light sensor" system can automatically sense the direction changes of sunlight and change the solar panel direction accordingly, Which can gather the solar energy maximally.

1000LM 2000LM 3000LM 4000LM

Ra＞80 IP65 PIR sensor

DC/AC:Sun charging/AC100~230V

Battery power <25% use AC100-230V

Battery power >25% solar working

Intelligent detection and switching DC/AC

Fully charged can be used for4-5 rainy days

Chasing light system device

Lights up for 30 seconds when motion is detected

Dim after you leave

Constant light max. 30 times per night

Attentions

1、Please keep it away from the children to avoid them touching danger.

2、Do not dispose of battery in fire. This may result in an explosion.

3、Do not expose the light to fire or intense heat as the battery may explode.

4、Do not immerse in water.

5、Never look directly into the light or shine it into another person's eyes.

6、Follow proper safety tips to prevent from falling off a ladder.

7、Consult your local construction safety guide if needed for installing the light fixture on a building.

8、This product can be installed outdoors, but we suggest that against installing for the rain/storm&high lights places.

9、Please use soft wet cloth to clean solar panel(at least once a year), preventing dust accumulated and reducing output power.

Solar energy technology, the whole year with no electricity bill

Solar photovoltaic panel, solar panel charging automatically during the day time, lighting up when dark comes; high conversion rate solar energy technology, the whole year lighting with no electricity bill, green and energy saving.

Long lasting duration, lighting all night.

Large battery capacity, ensure the luminaire long time lighting, and lasting Max 12h.

IP65 Protection

Precision and waterproof wire material, antioxidant and waterproof connector to prevent leakage; IP65 protection, fearless wind and rain, and meet outdoor use.

Technical parameters
Luminous flux:1000lm/2000lm/3000lm/4000lm	Power:7W/15W/20W/30W
Color temperature:3000K/4000K/6000K	Type:2835/84PCS/220PCS/220PCS/336PCS LED chip
Protection:IK06	Beam angle:120°
EEI:E	Lightning protection level(conform to)：≥4000V
CRI:Ra≥80	Wind resistance index:GB7000.5-6.31
Solar charging time:8-12H	Lighting time:4-5 rainy days
Irradiated area:>80 square meters	Controller:PIR sensor
Sensor distance:6-10 m	Installation Height:4-8 m
Frequency:50/60Hz

Material
Main Materials:ABS&PC

Certification
Certification:

Feature

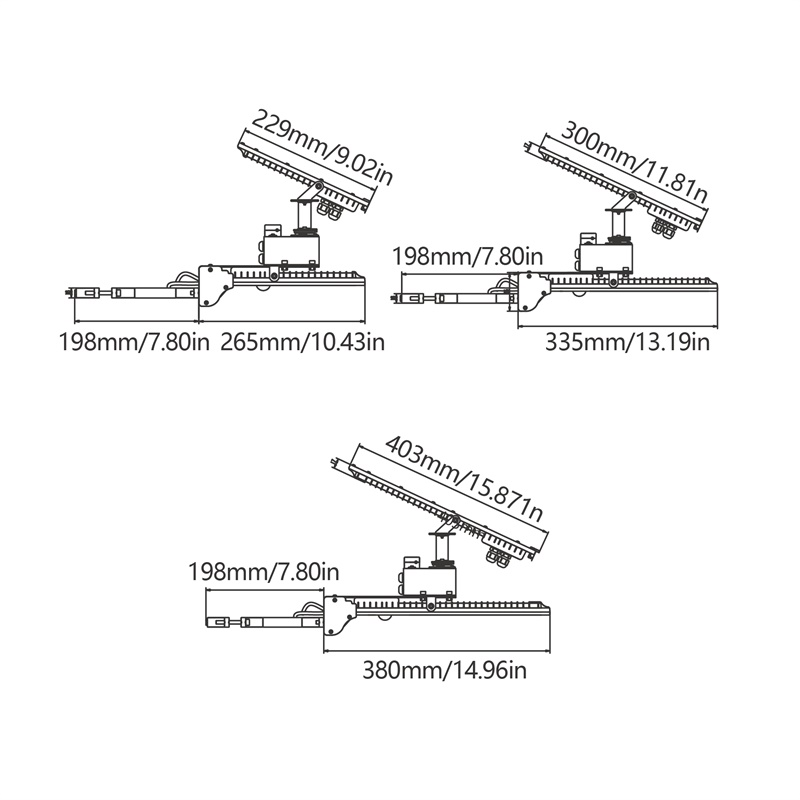

Product color:Black	Dimension(LxWxH):164×463×64.5/214×533×64.5/214×533×64.5/244×578×64.5mm

Life span
Life span:2 year

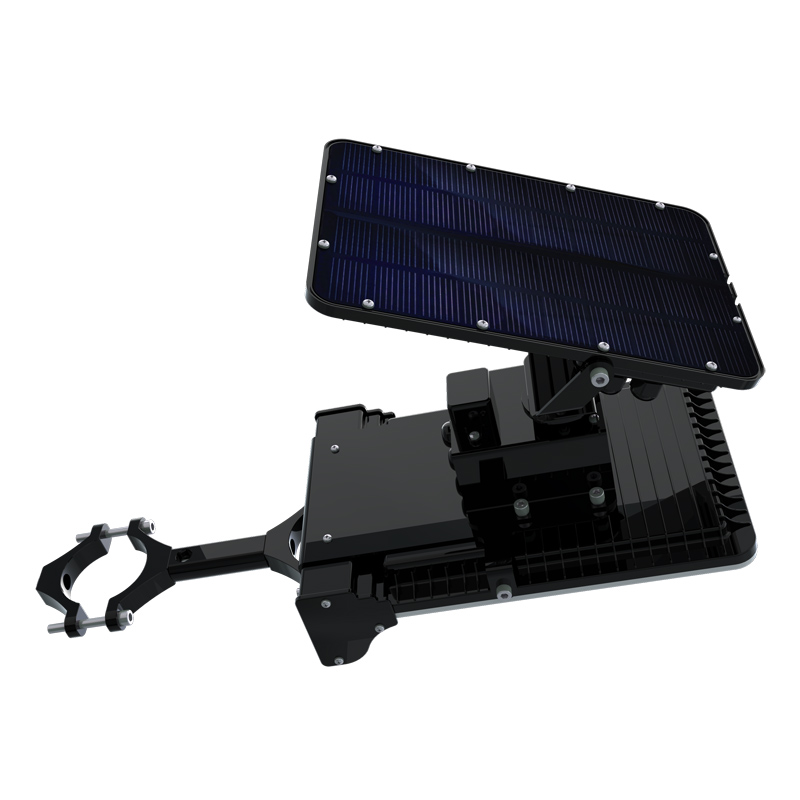

Solar panel specification
The battery type:Lithium batteries	Voltage:DC7.4V
Capacity:1.8Ah/3.6Ah/3.6Ah/5.4Ah	Solar panel power:3W/7W/7W/10W
Solar panel voltage:DC5.5V/ DC6V/ DC6V/ DC6V	Type of solar panel:Monocrystalline silicon
Solar panel size: L154xW219/L204xW289/L204xW289/L234xW334mm	Warranty:1 year

Application environment
Environment:Outdoor	Working Temperature:-20℃～40℃
IP Rating:IP65
